Vitafurni GYT02 Nano Gray 2-Tier Dish & Pan Pull-Out Cabinet Organizer
Premium 2-Layer Plate & Pot Drawer Storage System for 600-900mm Cabinets
Optimize your kitchen organization with the Vitafurni GYT02 / GFT02 Base Cabinet Drawer
Storage System. Specifically engineered for standard 600mm to 900mm cabinet widths, this
premium 2-tier pull-out organizer features a sophisticated Nano European Gray finish. This
advanced nano-coating not only delivers a modern, matte gray aesthetic that matches luxury
charcoal cabinetry, but also provides superior scratch resistance and exceptional oil/rust
protection.
Equipped with high-performance soft-close slide runners, the GYT02 ensures an ultra-smooth,
whisper-quiet glide, protecting delicate ceramics and heavy cast-iron cookware from shifting
or clattering. The intelligent double-layer layout organizes plates and bowls on the top tier
while reserving the spacious bottom tray for larger pots and pans, greatly streamlining your
kitchen workflow. Available in five standard width configurations, it is highly favored by global
B2B cabinet manufacturers and home renovators. We offer complete OEM/ODM customization services
to support your specific project and branding requirements.
Product Specifications
|
Item |
Parameter Details |
|
Product Model |
0501016 |
|
Product Dimension (W×D×H) |
464×288×422mm (for 500mm width cabinet) |
|
Fit Cabinet Width |
500mm / 600mm / 700mm / 800mm / 900mm |
|
Required Internal Cabinet Width |
464±2mm / 564±2mm / 664±2mm / 764±2mm / 864±2mm |
|
Minimum Required Internal Cabinet Height |
≥300mm |
|
Minimum Required Cabinet Depth |
≥450mm |
|
Main Material |
Aluminum Alloy |
|
Support Structure |
Triangular Mechanical Arm |
|
Recommended Maximum Load |
≤10kg (place evenly) |
|
Standard Color |
Gunmetal Gray |
|
Optional Function |
With LED light strip / Without LED light strip |
Fit Cabinet Width

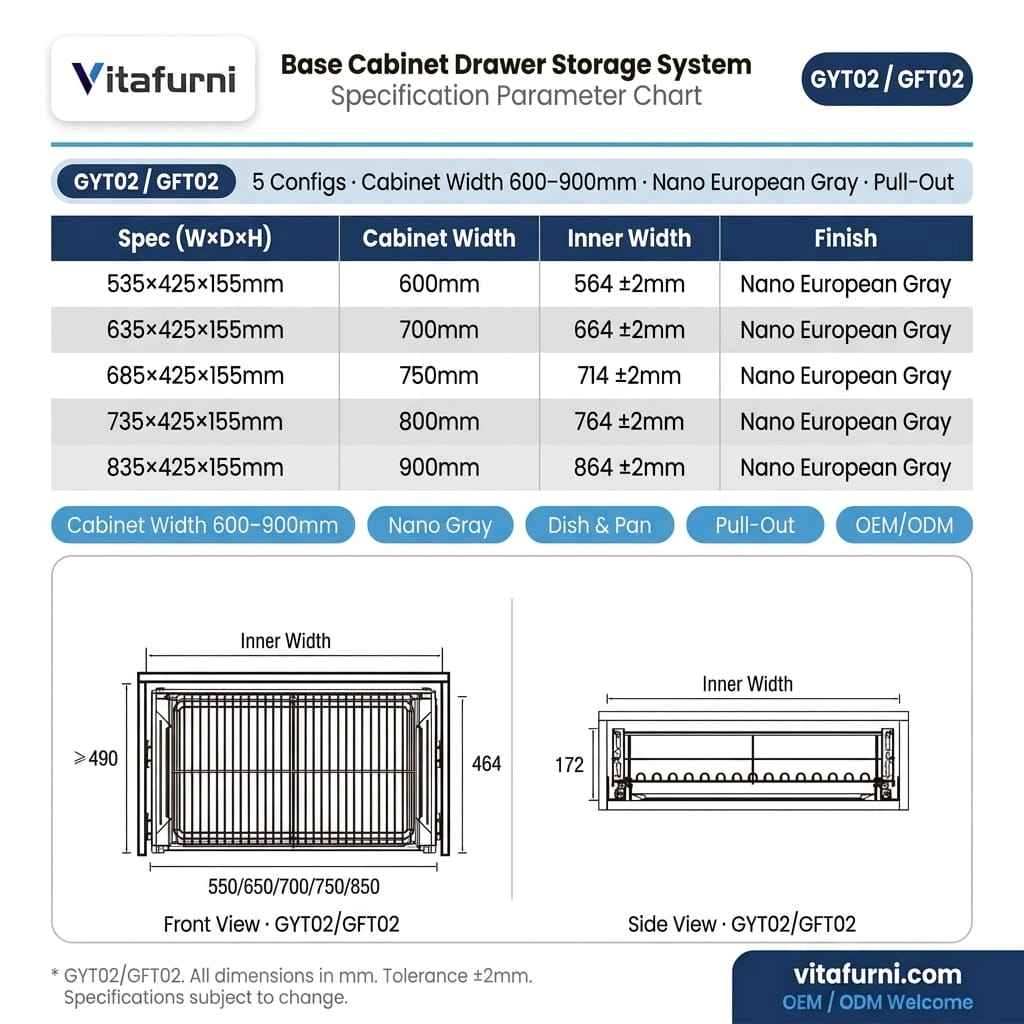

This product is equipped with complete installation technical drawings, including an adaptation size comparison table, installation positioning dimension drawing, and node installation detail drawing, which can assist cabinet pre-processing and on-site installation.
For cabinet brands and engineering customers, you can contact customer service to obtain technical files in CAD format to facilitate preliminary scheme design. Before placing an order, please confirm whether your cabinet specification is suitable according to the drawing size to avoid installation obstacles.
Function Configuration
Color Option
Standard with gun-gray aluminum alloy, it supports customization of other colors/surface treatment processes.
Key Features
Applications
Installation & Usage
Usage Instructions
・Before the first use, you can adjust the supporting force according to the total weight of the items in the basket to ensure smooth lifting and stable hovering.
・Pull the handle lightly to pull down the basket and release it when you pull it to the required height, and it will hover automatically; push the basket back, and it will automatically return to position with a buffer.
・Please place items evenly on the double-layer basket; do not exceed the recommended maximum load so as not to affect the life of the support structure.
・For daily cleaning, wipe the aluminum alloy basket with a wet rag. Oil stains can be wiped with neutral detergent; avoid using strong acid and alkali to corrode the surface.
Customization Options
As a professional original manufacturer of kitchen storage hardware, we support full-dimensional customization services and provide you with one-stop space storage solutions.
Frequently Asked Questions
Still have questions?
Quickly find answers to our customers' most frequently asked questions.
If you can't find the answer you need, feel free to contact us.
we're always here to help.
Wall Cabinet Systems 0501016
Can it really hover at any position after pulling down? Can the force be adjusted?
Yes, the product supports free hovering at any height, and the supporting force can be adjusted according to the total weight of the items in the basket, ensuring stable hovering without slipping under different loads.
Will it shake during lifting? Is the load-bearing capacity enough?
It adopts a triangular mechanical arm support structure, which runs stably without shaking left and right. The overall aluminum alloy material has strong load-bearing capacity. It is recommended that the total weight of evenly placed items does not exceed 10kg, which fully meets the storage needs of daily seasonings and dry goods.
Does the version with light need to reserve a power supply?
Yes, the version with light needs to reserve a 5-hole socket in the cabinet for power supply. The power is extremely low, and there is almost no power consumption burden for daily use.
Do you support bulk purchase and OEM customization?
We are the original production factory, supporting full-category OEM/ODM customization, including logo printing, packaging customization, size/function customization, etc. For bulk purchase/engineering orders, you can contact the account manager to obtain exclusive quotations and cooperation plans.
Can I customize if my wall cabinet width is not a standard size?
The regular version covers standard wall cabinets with a width of 500-900mm. If your wall cabinet is a non-standard size, we support size customization service. You can contact customer service to provide your internal cabinet size, and we will adapt an exclusive solution for you.
